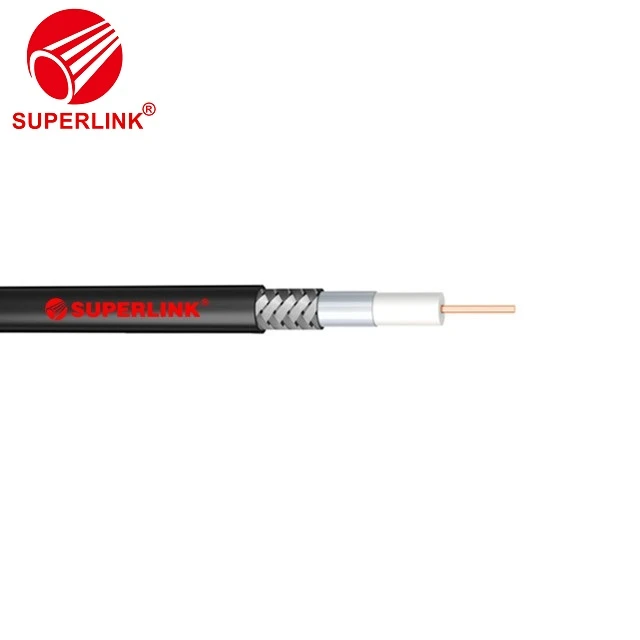

Anle Chofaj Anba Tet 75 Ohms Stranded Conductor 1.00mm Coaxial Kab CT100

Coaxial Kab CT100 Aplikasyon: 1) Kondikte enterye: BCC / CCS 2) Dielectric: FPE 3) AL Foil: Kosyon, ki pa kosyon, sel, doub 4) Braiding materyel fil: Cu, Al-Mg, TC 5) Braiding dyamet fil: 0.11mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm 6) Braiding net: 32,48, 64, 72, 80, 96, 112,128 ak ...

Tip:	lwen
Kalite Kondikte:	bloke
Aplikasyon:	Anle, Chofaj, Underground
Kondikte Materyel:	BC / CCS
Materyel Sheath:	PVC
Materyel izolasyon:	FPE

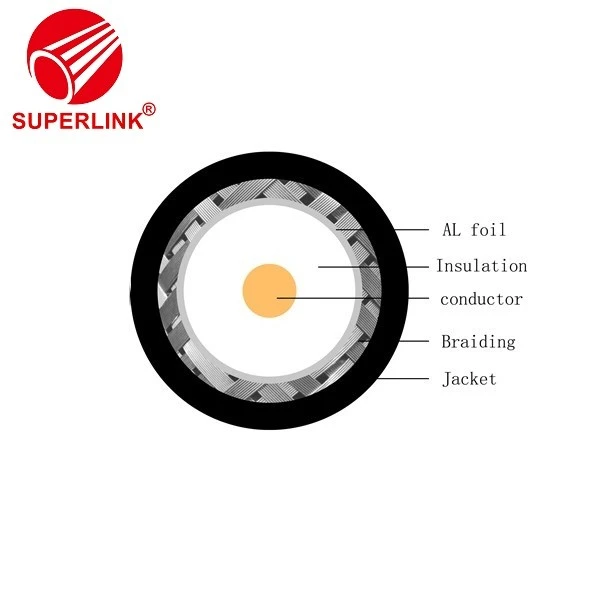

Aplikasyon:

1) Kondikte Enterye: BC / CCS
2) Dielectric: FPE
3) AL Foil: Kosyon, ki pa kosyon, sel, doub
4) Brading materyel fil: Cu, Al-Mg, TC
5) Braid dyamet fil: 0.11mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
6) Braiding net: 32,48, 64, 72, 80, 96, 112,128 ak plis anko
7) Pwoteksyon: 40, 50, 60%, 80% ak plis anko
8) PVC Degre: 65, 68, 70, 75
9) koule: Nwa, blan
10) OEM ak kliyan konsepsyon yo akeyi

anbalaj

1) Inner anbalaj: 100m nan PE fim, 100m nan plastik / spool, 305m / bwa tanbou, 500m / bwa tanbou
2) Eksterye anbalaj: Carton, tanbou an bwa
3) Lot anbalaj ki disponib dapre demann kliyan yo.

Atansyon (@20ºC)
Frekans (MHz)	Max Atansyon (dB / 100FT)	Max Atansyon (dB / 100M)
5	0.9	2.8
55	2.1	6.6
187	3.6	11.8
211	3.8	12.5
400	5.1	16.7
500	5.7	18.7
750	7.0	22.8
860	7.5	24.6
1000	8.0	26.3
1500	9.9	32.5
1800	10.9	35.6
2200	12.6	41.2
3000	13.8	45.2
