Fib Optical Drop kab FTTH G657A Nwayo

Fib optik gout kab FTTH G657A nwayo Karakteristik: Bow tie kalite kwa - konsepsyon seksyon, LSZH yon pwoteksyon jakèt PVC. De paralèl FPR oswa galvanised fil asye ranfò pou pwoteje fen fib bay bon jan tansyon ak presyon. Rolex flex fibre, pou bay greeter Pleasant...

Fib optik gout kab FTTH G657A nwayo

Karakteristik:Bow tie kalite kwa -konsepsyon seksyon, LSZH yon pwoteksyon jakèt PVC. De paralèl FPR oswa galvanised fil asye ranfò pou pwoteje fen fib bay bon jan tansyon ak presyon. Rolex flex fibre, pou bay greeter Pleasant ak amelyore karakteristik transmisyon rezo a. Fasil dekale, pwa limyè, ti gwosè, konsepsyon inik Groove, fasil yo swiv enstalasyon an ak antretyen.

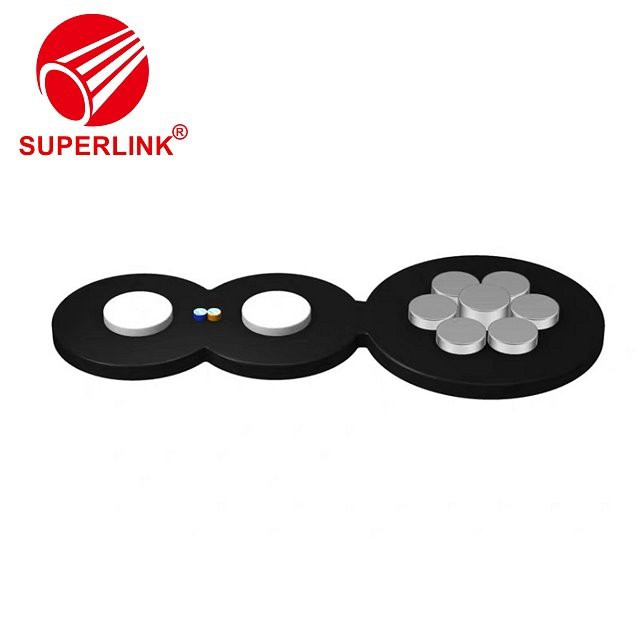

Estrikti kab: bare colored fibers plus 2 FRP fiber reiforced plastic plus jacket LSZH. outder diameter is 2.0x 3.0mm.

1. Valè tipik nan tablo a ka ajiste kòmsadwa

2. Espesifikasyon diferan ki disponib sou demann

3. Pwopriyete anviwònman an

Ranje tanperati: -40 plis 70 degre

Estanda anviwònman: ROHS konfòme

4. Pwoteksyon dife: satisfè kondisyon ki nan IEC60332

Karakteristik optik:

		G.652	G.655	50/125μm	62.5/125μm
Atenuasyon (plis 20 degre)	@850nm			Less than or equal to 3.5 dB/km	Less than or equal to 3.5 dB/km
	@1300nm			Less than or equal to 1.5 dB/km	Less than or equal to 1.5 dB/km
	@1310nm	Less than or equal to 0.45 dB/km	Less than or equal to 0.50 dB/km
	@1550nm	Less than or equal to 0.30 dB/km	Mwens pase oswa egal a 0.50dB/km
Bandwidth (Class A)	@850nm			Greater than or equal to 500 MHz·km	Greater than or equal to 200 MHz·km
Bandwidth (Class A)	@1300nm			Greater than or equal to 1000 MHz·km	Greater than or equal to 600 MHz·km
Numerical Aperture				{{0}}.200±0.015NA	{{0}}.275±0.015NA
Cable Cut-off Wavelength λcc		Mwens pase oswa egal a 1260nm	Mwens pase oswa egal a 1480nm

Espesifikasyon

1. FTTH Indoor and Outdoor

2. Suitable for aerial and indoor laying method.

3. Long distance and local area network communic

4. Outdoor FTTH fiber cable with steel messenger, cores are positioned in the centre, two parallel FRP are placed at the two side
